GF
- ACOPLAMENTO GRADE
Vantagem
: altos torques em
tamanhos reduzidos.

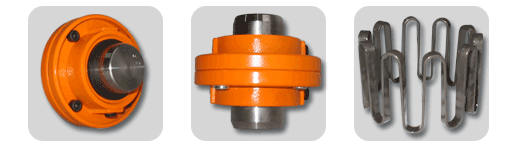

Conjunto de cubos em aço usinado, unidos por grade
elástica em aço especial
tratado termicamente, protegido de agentes externos por capas
metálicas.
Absorve desalinhamentos reduzindo o esforço e aumentando a
vida
útil dos
componentes do sistema.
Manutenção simples e rápida,
não
necessitando afastar os equipamentos e seus
cubos.para a troca das grades.
|
|
Modelo
|
D
|
f
|
d
|
L
|
L1
|
Torque
Nm
|
Rpm
Máx.
|
Peso
(KG)
|
GF
- 3
|
95
|
27
|
40
|
86
|
41
|
65
|
6000
|
1,8
|
GF
- 4
|
103
|
33
|
46
|
111
|
54
|
95
|
6000
|
2,7
|
GF
- 5
|
114
|
38
|
54
|
111
|
54
|
157
|
6000
|
3,6
|
GF
- 6
|
126
|
46
|
66
|
111
|
54
|
215
|
6000
|
4,5
|
GF
- 7
|
142
|
56
|
75
|
111
|
54
|
430
|
6000
|
6,8
|
GF
- 8
|
187
|
67
|
92
|
156
|
76
|
860
|
5000
|
14
|
GF
- 9
|
199
|
71
|
97
|
168
|
83
|
1285
|
4500
|
16
|
GF
- 10
|
210
|
83
|
114
|
195
|
95
|
1720
|
3750
|
23
|
GF
- 11
|
226
|
91
|
125
|
195
|
95
|
2470
|
3600
|
27
|
GF
- 12
|
246
|
98
|
137
|
202
|
98
|
3780
|
3600
|
34
|
GF
- 13
|
278
|
108
|
156
|
202
|
98
|
5165
|
2700
|
45
|
GF
- 14
|
302
|
118
|
171
|
254
|
124
|
7490
|
2500
|
66
|
GF
- 15
|
349
|
127
|
184
|
260
|
127
|
10750
|
2400
|
79
|
GF
- 16
|
387
|
140
|
209
|
260
|
127
|
15000
|
2300
|
98
|
GF
- 17
|
425
|
152
|
236
|
267
|
130
|
19300
|
2200
|
129
|
GF
- 18
|
476
|
178
|
271
|
267
|
140
|
24750
|
2100
|
166
|
GF-190
|
512
|
280
|
305
|
385
|
180
|
35125
|
2000
|
325
|
GF-200
|
580
|
320
|
356
|
385
|
180
|
53780
|
1800
|
388
|
|
|
|
|
